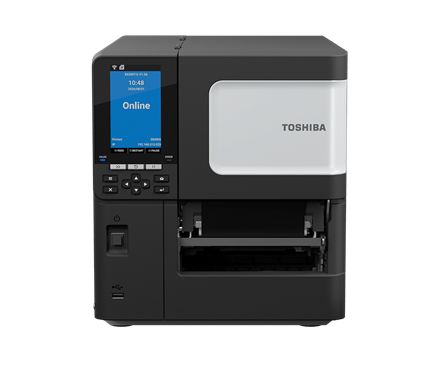

Toshiba BX420T 4 inch Industrial Thermal Transfer Label Printer USB LAN
Select between 203dpi, 300dpi.and 600dpi Print Resolution
Toshiba BX420T Industrial Thermal Transfer & Direct Thermal Printing, USB + LAN I/F, Flat Type Head
Select Print Resolution:
- 203dpi BX420T-GS02-QM-S
- 300dpi BX420T-TS02-QM-S
- 600dpi BX430T-HS02-QM-S
Main Features:
Welcome to a new era of industrial printing. Built on a foundation of field-proven hardware, the Toshiba BX400 (4-inch) series integrate rugged reliability with advanced cloud-based intelligence. Powered by a dual-core CPU driving the revolutionary A-BRID multitasking platform, these next-generation printers deliver seamless performance, remote fleet control, and a lower total cost of ownership (TCO) for high-volume enterprise environments.
Key Features & Benefits
-
The Smart A-BRID Platform: Utilizes a multi-core architecture (combining a Linux-based OS and a real-time OS) to enable direct PDF printing (with auto-scaling/rotation) and automatic legacy printer language emulation.
-
Built for Continuous Operations: Minimizes downtime with long-life print heads and support for extra-long 800-meter ribbons to dramatically reduce operator interventions.
-
Cloud-Ready Fleet Management: Monitor, diagnose, and push configuration updates remotely from anywhere via the web interface and e-BRIDGE CloudConnect.
-
On-Demand Automation: Easily transform any base unit into a high-speed, plug-and-play automatic print-and-apply system using the modular APLEX option.
Media & Ribbon Specifications
The BX Series features standard centered media alignment with automatic width detection to ensure highly accurate, consistent tracking across all material variants.
Media Specifications
|
Feature |
BX400 Series (4") PDF |
BX600 Series (6") PDF |
|
Media Type Support |
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide |
Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide |
|
Media Format |
Roll, fanfold |
Roll, fanfold |
|
Backing Paper Width |
• BX410T: 30–120 mm • BX420D / BX420T: 25–110 mm • BX430T: 25–114 mm |
50–165 mm |
|
Label Thickness |
0.13 – 0.17 mm |
0.13 – 0.17 mm |
|
Outer Media Roll Diameter |
Max. 200 mm |
Max. 200 mm |
|
Inner Media Core Diameter |
76.2 mm |
76.2 mm |
|
Media Near-End Detection |
Adjustable (e.g., alerts at 10% remaining) |
Adjustable (e.g., alerts at 10% remaining) |
Ribbon Specifications
|
Feature |
BX410T / BX420D |
BX420T |
BX430T |
BX600 Series (6") |
|
Max. Ribbon Width |
Max. 112 mm |
Max. 112 mm |
Max. 115 mm |
|
|
Max. Ribbon Length |
600 m / 800 m |
600 m |
300 m |
600 m / 800 m |
|
Max. Ribbon Diameter |
90 mm |
90 mm |
70 mm |
90 mm |
|
Ribbon Core Size |
25.7 mm (±0.2 mm) |
25.7 mm (±0.2 mm) |
25.7 mm (±0.2 mm) |
25.7 mm (±0.2 mm) |
|
Ribbon Near-End Detection |
30 m or 70 m selectable |
30 m or 70 m selectable |
30 m or 70 m selectable |
30 m or 70 m selectable |
(Note: The BX420D is a dedicated Direct Thermal model and does not require an ink ribbon ).
