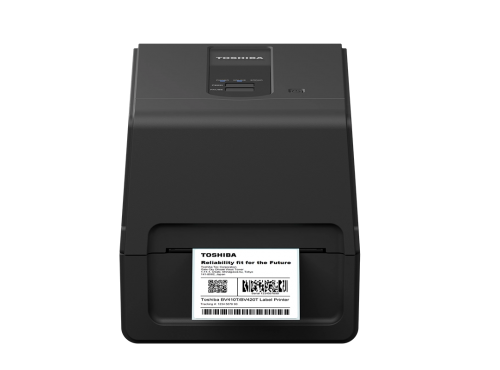

Toshiba BV420T Thermal Transfer Label Printer 203dpi USB LAN BV420T-GS02-QM-S

Toshiba BV420T 4 inch wide Thermal Transfer Label Printer, 203dpi, Black, USB and Ethernet - NO LCD

Model:  BV420T-GS02-QM-S (Black, 203dpi, Direct Thermal and Thermal Transfer) – Without LCD

Replacement for the Toshiba B-FV4 Series and Toshiba B-EV4 Series

Key Series Highlights

• High-Speed Productivity: Market-leading throughput with speeds up to 7 ips (203 dpi models).
• Future-Proof Connectivity: Standard USB and Ethernet with optional Dual-Band Wi-Fi, Bluetooth (MFi certified), and Serial interfaces.
• Broad Compatibility: Supports multiple emulations (ZPL II, DPL, SBPL) allowing for seamless integration into existing printer fleets.
• Smart Design: A small footprint that fits where space is a premium, featuring a tool-less printhead and platen replacement for easy maintenance.

Technical Specifications

• Print Method: Thermal Transfer and Direct Thermal, 203dpi
• Memory: 128 MB (FROM) / 128 MB (SRAM)
• Max Print Width: Up to 108 mm
• Software & connectivity: Emulation ZPL II, DPL, SBPL, EPL2, IPL
• Interface USB 2.0, USB Host, Ethernet 10/100 Base T (IPv4 & IPv6)
• Printer driver Windows 11/10, Windows Server 2019/2016/2012 R2/2012, SAP, Linux, macOS
• Language mode TPCL, Basic Command Interpreter (BCI)
• Includes Label software BarTender UltraLite
• Media Handling: Supports roll or fanfold media; optional peel-off and full/partial cutter modules (standard BV models).
• Operating Compatibility: Windows 10/11, Windows Server, SAP, and SDKs for iOS and Android.
• Dimensions: 200 x 267 x 198.3 mm
• Inner media core diameter  25.4mm, 38.1mm, 42 mm
• Without LCD
• Media: Backing Paper Width 25.4 mm – 118 mm / Max Print Width (203 dpi) 108 mm
• Ribbons: Width: 40 mm to 110 mm / Max Ribbon Length: 300 meters / Core: Supports both 25.4 mm (1 inch) and 12.7 mm (0.5 inch) cores / Max Ribbon Diameter: 65 mm / Ribbon Types: Compatible with Wax, Wax/Resin, and Resin ribbons
