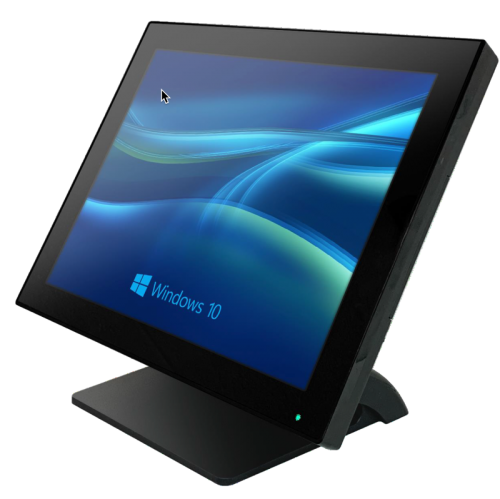

EBN D-POS Dragon 150 Touch Screen POS Terminal 15" Win 11

The sleek high performance entry level terminal D-POS Dragon 150 is a highly reliable Touch POS Terminal with the performance of the new Intel® N97 (AlderLake-N) processor. Perfect for empowering your business with high performance and sophistication.

Features:

• 15" Touch POS Terminal
• One of the most powerful CPU’s POS units in Australia at the time of its release
• 6x USB 3 ports, 2x USB-C ports and 1x HDMI output
• Pre-loaded with Windows 11 IoT
• Easily upgradable m-key storage and SO-DIMM RAM
• Fanless – for quiet/silent operation
• VESA mountable EBN-DPOS-N97-W10IoT
• Features Intel Alder-Lake N97 CPU
• 15″ Capacitive Touch Display
• 8G DDR4 SO-DIMM Memory (and up to 16GB of RAM)
• 128G m-key Storage
• Stylish front panel that is both water resistant and dust proof
• Optional Peripherals: MSR, and 10.1″ Second Customer Display
• Slim Bezel and Small Foot Print
• Window 11 IoT Enterprise 21/H2
• Operating system fully installed and configured with License sticker attached
• 3 Year Return To Base Warranty

Specifications:

• Main Board Name FCBGA
• CPU Alder Lake-N N97(4C/4T) Up to 3.6G
• System Memory DDR4 SO-DIMM x1, Max. up to 16GB with un-buffered and non-ECC type
• O.S. Support Windows 10 / 11 – Windows 10/11 IoT Enterprise (64bit) – Linux kernel 3.0+ and associated distributions
• Display: Size 15.1″ 4:3 Industrial grade panel
• Panel backlight type LED with 50K hours of life
• Brightness 250 nits
• Resolution 1024 x 768
• Touch Screen P-cap multi-touch with 7H hardness over lens – 10 Point Touch
• Front panel type True flat bezel free with IP65 compliant
• Tilt Angle 15~90°
• Storage Device
• Interface m.2 2280 NVME
• Storage Capacity 128G
• I/O Ports
• Serial COM 1 and 2: RS-232, RJ-50 with convert to DB-9 cable, Pin-9 RI/5V/12V BIOS Selectable
• USB USB 3.0 x 6, USB-C x 2
• Cash Drawer RJ12 x 1, support 12V / 24V DC cash drawer
• Audio 2W Speaker x 2
• DC-in 19V DC / 3.42A input
• LAN 2.5Gigabit Ethernet by RJ-45, support Wake on LAN
• Display Port 1x HDMI
• Audio-out 3.5mm Stereo Audio Output connector x 1
• Remote Power Switch Rock Power Switch x 1
• Physical Dimensions
• Weight 9.5 kg
• Dimensions 47 × 42 × 40 cm
• Mounting mechanism Support VESA Mount
• Communication Wireless LAN module, half size mini PCIe type (Optional)
• Expansion Slot Full size Mini PCIe x 1 Half size Mini PCIe x 1
• Material Aluminium / ABS
• Certifications CE / FCC / WEEE / RoHS
• Ingress Protection IP65 @ front panel
• Environmental Conditions
• Storage Temperature -40~ 85°C (-40~185°F)
• Humidity 95% @ 40°C (non-condensing)
• Operating Temperature -With extended temperature SSD/mSATA/RAM/Adapter : -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s air flow -With standard system configurations: 0 ~ 50°C (-32 ~ 122°F) with 0.7m/s air flow
