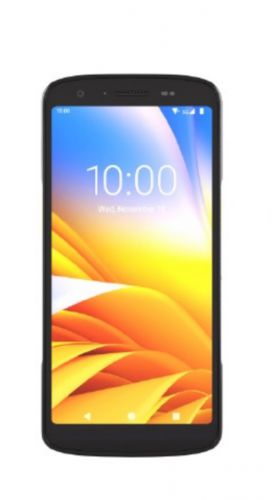

ZEBRA PDT TC58E 2D-SR SE4720 6/64 5G AD/GMS

The Zebra TC53/TC58 is a new generation of mobile computers designed to improve operational efficiency and workforce productivity. These devices have new hardware, solutions, and sensor technologies that redefine mobile computing performance.

Multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus sold separately, Corning Gorilla Glass, water droplet rejection; fingerprint resistant anti-smudge coating.

Configuration: TC58E, WAN, 6.0" DISPLAY, 5G FR1, WIFI 6E, 6GB RAM/64GB ROM, SE4720 IMAGER,   16MP RFC, 8MP FFC, WARM SWAP, 4680 MAH STANDARD BATTERY, WIRELESS CHARGING COMPATIBLE, GMS, ROW ONLY

Features:

• Standard Range - SE4720
• Blazing Speed - Qualcomm 6490 octa-core processor, up to 8 GB of RAM and 128 GB of Flash
• 2 TB MicroSD Card Slot
• Wi-Fi 6E and 5G, support for CBRS private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities
• Large 6-inch display, easy to read both indoors and outdoors
• Edge-to-edge design that allows for more information on the screen
• The screen can be used with a finger, with or without a glove, or a stylus,  also works when wet
• Thinner than older model, Rugged device
• Unmatched battery technology, Zebra’s PowerPrecision+ standard 4680 mAh and extended 7000 mAh batteries
• Three integrated microphones, two speakers and support for wireless and wired headsets
• 16 MP Integrated camera, which is the highest resolution in its class
• An optional Optical Image Stabilization (OIS) feature allows for capturing sharp, detailed photos for documentation purposes
• Programmable buttons, including dedicated scan buttons, a push-to-talk button, and volume controls

Optional Solutions that drive a new age of mobility:

• Zebra Dimensioning Certified Mobile Parcel (only specific models as indicated, not this configuration):
• Industry-first solution that utilizes the integrated Time of Flight sensor to collect accurate ‘legal for trade’ parcel dimensions in seconds by press of a button
• Pricing isaccurate and workers are more productive, no need to manually measure boxes
• Drop the TC53/TC58 into a Workstation cradle to connect to a monitor, keyboard, mouse, printer and more
• Workstation Point-of-Sale cradle - to connect to everything needed to create a complete POS, such as a large display, scanner, receipt printer, payment terminal, keyboard and mouse
• Optional Lightning Fast RFID add on - choose RFID model

Specifications

• Dimensions: 6.48 in. L x 3.04 in. W x 0.66 in. H (164.8 mm L x 77.35 mm W x 16.75 mm H).
• Weight: 10.3 oz./293 g with the standard battery
• Display: 6.0 in. Full High Definition; 1080x 2160; LED back-light; 600 NITS; optically bonded to touch panel
• Operating System: Upgradeable to Android 16.
• CPU: Qualcomm 6490 octa-core, 2.7 GHz.
• Memory: Available with 4 GB RAM/64 GB UFS Flash, 8 GB RAM/64 GB UFS Flash, or 8 GB RAM/128 GB UFS Flash. A MicroSD card slot supports up to 2 TB of storage
• Operating Temperature: -4°F to 122°F/-20°C to 50°C
• Storage Temp. -40°F to 158°F/-40°C to 70°C:
• Humidity 5% to 95% non-condensing
• Sealing IP68 and IP65 with battery per applicable IEC sealing specifications
• Wireless Connectivity: Includes Wi-Fi 6E, 5G, and CBRS (US only)
• The TC58 model supports WWAN 5G. It also features Bluetooth v5.2.

Applications

• Retail: The TC53/TC58 can be used for tasks such as price and inventory checks, mobile point of sale (POS), and managing back-of-store operations
• Transportation and Logistics: It is suitable for proof of delivery and condition, as well as invoicing and mobile POS
• Field Service: The device can be used for asset management, parts inventory, and invoicing
• Workstation: When placed in a Workstation cradle, the TC53/TC58 can connect to a monitor, keyboard, mouse, and printer, allowing it to function as a fixed workstation
• It can also be used as a complete hybrid POS by connecting to a display, scanner, receipt printer, and payment terminal
• Parcel Dimensioning: The device can be used with the Zebra Dimensioning™ Certified Mobile Parcel solution to quickly and accurately measure parcel dimensions for shipping

Optional Extended Warranty:

• 3 year Z1C Essential TC58XX, 3 day TAT, purchased within 30 days, comprehensive
• See attached brochure
