DATALOGIC POWERSCAN PM9600-AR 2D Barcode Scanner 433MHZ Cradle USB Kit (Replaced PM9500 PM9501)

DATALOGIC POWERSCAN PM9600 - Auto Range Rugged 2D Imager

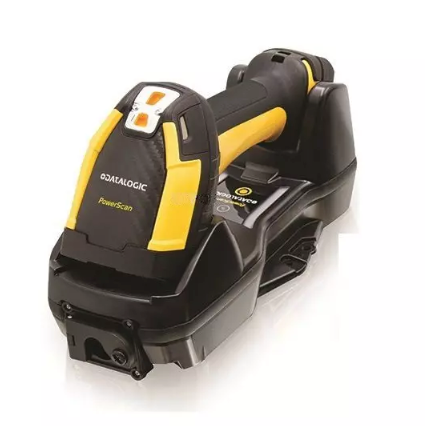

Datalogic PowerScan PM9600-AR industrial 1D/2D handheld imager, standard range, 433 MHz radio frequency, USB kit. Kit includes: scanner PM9600-AR, cradle BC9630-433, cable CAB-552, power supply 8-0935
- Requires AU power cord (CAIEC)

Features:

• Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
• Standard Range and High Performance models
• Water and Particulate Sealing Rating: IP65 and IP67; Cradle IP65; 10 million hits trigger
• Center of gravity design
• Modular cradle design allowing interface expansion
• White light illumination
• High visibility OLED Display with 4-Keys /16-Keys keypad options
• Datalogic’s 3GLTM (3 Green Lights) technology and loud beeper for good-read feedback
• Datalogic’s MotionixTM motion-sensing technology
• Wireless Charging reducing total cost of ownership
• EASEOFCARE Service Plans offer a wide range of service options to protect
• your investment, ensuring maximum productivity and ROI
• Scanner 3 Year Warranty
• Battery 3 month Limited Warranty

Radio Range (Open Air):

• Radio Frequency: 433 MHz; 910 MHz
• Effective Radiated Power:
• 433 MHz: < 10 mW;
• 910 MHz: < 50 mW
• Point-to-Point/Multi-Point Configuration
• Max. Readers per Radio Receiver: 16
• Two Way Communications.
• Radio Range (Open Air):
• 433 MHz: 150 m / 492 ft low speed; 100 m / 328 ft high speed
• 910 MHz: 230 m / 754 ft low speed;
• Frequency hopping; 180 m / 590 ft high speeds PM9600-SR433RBK10

AR Model - Auto Range - Reading Ranges:

• Minimum distance determined by symbol length and scan angle, Printing resolution, contrast, and ambient light dependent
• Code 39 3 mils: up to 95 cm / 37 in
• Code 39 20 mils: up to 600 cm / 236 in
• EAN/UPC 13mils: up to 320 cm / 126 in
• Code 128 40 mils: up to 1000 cm / 393 in
• Code 128: 100 mils: up to 2000 cm / 787 in
• Data Matrix 10 mils: up to 110 cm / 43 in
• Data Matrix 55 mils: up to 650 cm / 256 in
• Data Matrix 100 mils: up to 1000 cm / 393 in

Applications:

Manufacturing / Shop Floor:

• Work-in-Progress
• Sub-Assembly
• Component Tracking
• Quality Control
• Time and Cost Analysis
• Machine Replenishment /Configuration
• Line Inventory Control

Warehouse and Logistic Centers:

• Shipping / Receiving
• Parcel Preparation
• Picking / Put Away
• Automatic Sorting Back-Up
• End of Line Sorting

POWERSCAN PM9600 - Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic’s STAR Cordless System. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic’s Wireless Charging System. Based on inductive-charging technology, Datalogic’s Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time – and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY
The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
